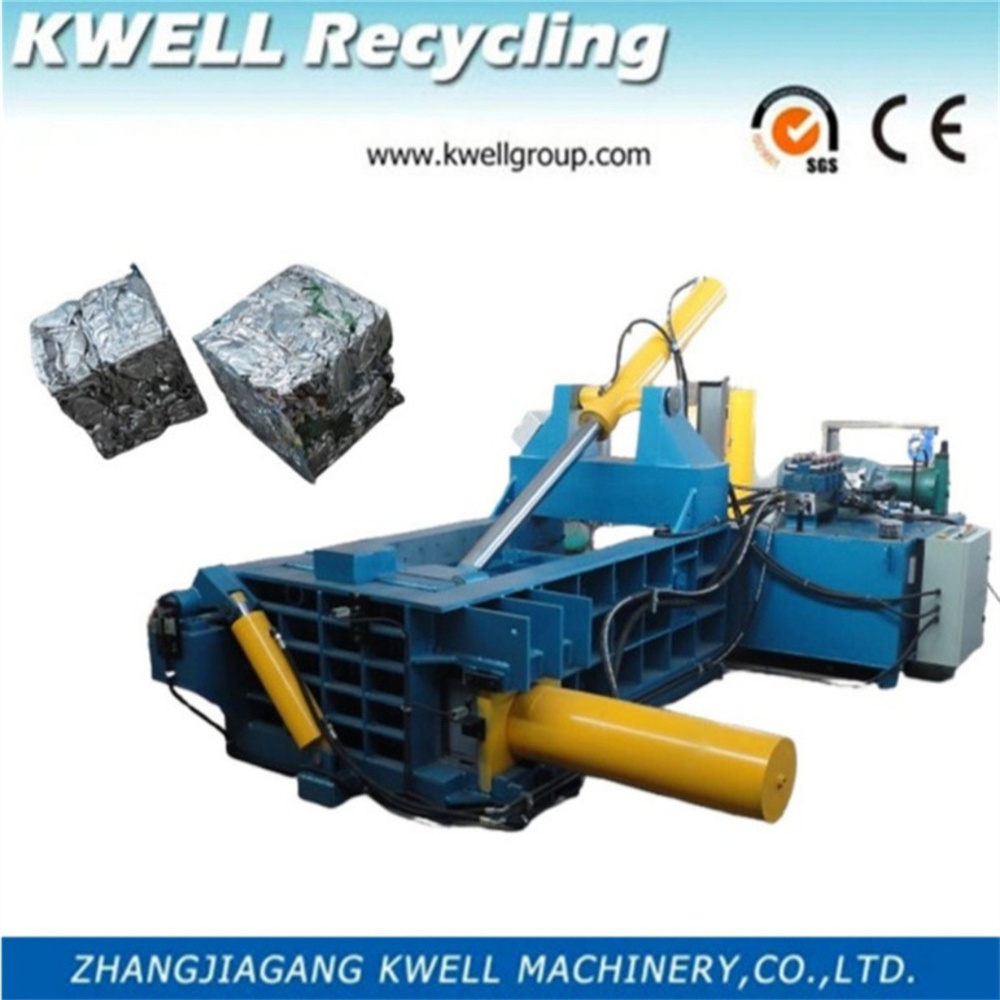

1. Hydraulic metal baler is capable of baling various metal leftover, steel paring, waste copper, aluminum, copper, stainless steel and scraped car materials into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation and refining costs, and increase transportation speed.
2. Such baler is mainly used in steel plants, recycling corporation, turnings, leftover material, waste recovery and nonferrous and ferrous metal refining industry.
3. Such machineries adopt hydraulic drives, with manual or PLC automatic control operation as options.
4. The discharging types fall into turning over, push out, forward out and manual lifting.
5. The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.
Part II. Parameters
|
Nominal Force (kn) |
Press Box Size (L*W*H)(mm) |
Bale Size(W*H)(mm) |
Bale Weight(kg) |
Production(T/h) |
Power (kw) |
|
|
Y81T-63 |
630 |
1000*600*500 |
200*200 |
28~35 |
0.9~1.1 |
7.5 |
|
Y81T-100 |
1000 |
1000*700*550 |
230*230 |
42~53 |
1.2~1.5 |
11 |
|
Y81T-125A |
1250 |
1200*700*600 |
250*250 |
50~62 |
1.2~1.5 |
15 |
|
Y81T-125B |
1250 |
1200*700*600 |
300*300 |
65~80 |
1.2~1.8 |
15 |
|
Y81T-160 |
1600 |
1400*900*700 |
320*320 |
70~85 |
1.5~2.2 |
22 |
|
Y81T-160A |
1600 |
1600*1000*800 |
400*400 |
110~150 |
2.0~3.5 |
22 |
|
Y81T-160B |
1600 |
1600*1200*800 |
400*400 |
130~180 |
2.0~4.0 |
15*2 |
|
Y81T-200A |
2000 |
1600*1200*800 |
450*450 |
140~190 |
2.5~4.5 |
37 |
