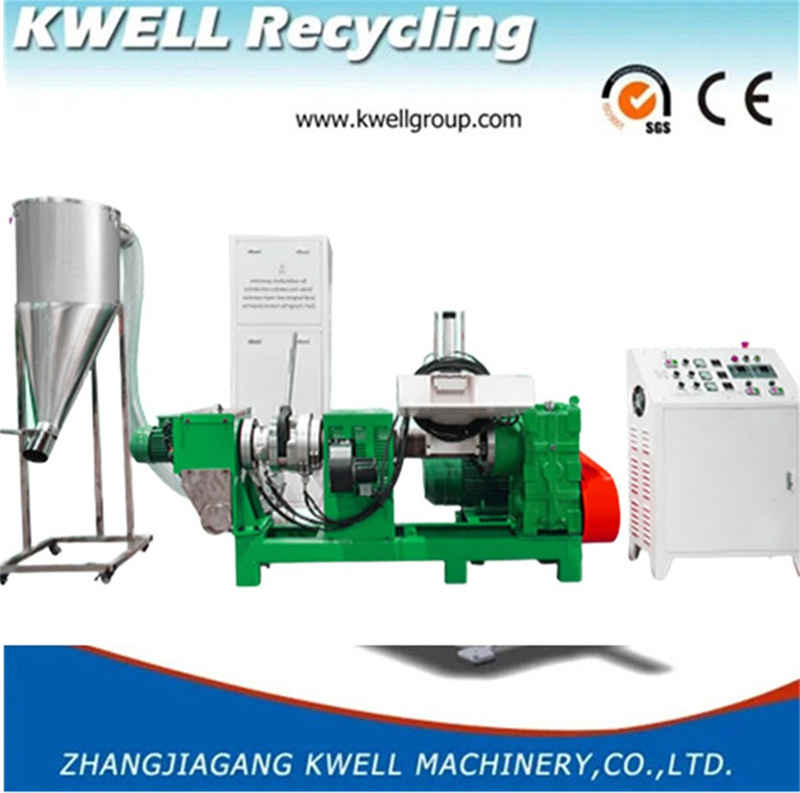

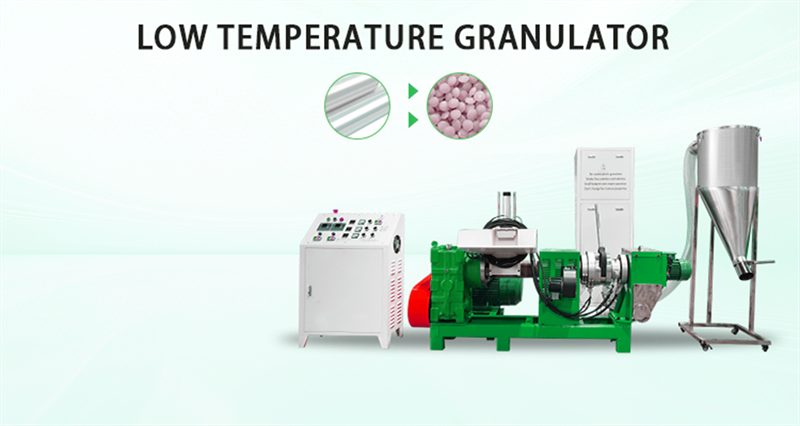

Low temperature environmental mini small air cooling pelletizing line
Product Description
1. Introduction and Application
Through friction extrusion, particle cutting, air cooling, and the use of screw recycling, the particle density is standardized without destroying the molecular structure and physical properties of plastic particles
Applicable plastic materials: PE PP PVC PLA PO...etc.
Material shapes: film, reel, roll, scraps...etc.
Heating: optional
Screen changer: optional
Feeding: manually or cylinder
Note: depending on different material properties, various downstream equipments are needed.
2. Features
1. The main purpose of the machine is to recycle plastic film scraps, roll films and other waste plastic films.
2. The machine is simple and safe to operate, beautiful in appearance, good in reliability and good in stability.
3. Low energy consumption, no water, no need to preheat during the production process; Environmentally friendly - no water consumption, gas and materials generated.
4. Compared with the traditional granulator, the low-temperature granulator successfully protects the molecular structure and has no crystal dots or film perforations.
5. The film material is pelletized in the semi-plasticized production process of the machine, therefore, the material particles produced without changing the physical properties of the film material can be mixed with the new material in large proportions
Product Parameters
|
Extruder model |
Motor Power(kw) |
Capacity(kg/hr) |
|
SJ75 |
11-15 |
30-60 |
|
SJ90 |
15-22 |
50-80 |
Remark: The above capacity is based on plastic scrap/rigid flake/agglomerated material, actual capacity varies on account of different condition of raw material.
